Input: Manifest Format

The default input is a JSONL manifest. Each line describes one rollout case. Paths may be absolute or relative to the manifest file.

Single View

{"case_id":"case_001","task_name":"put_can","task":"put the can into the basket","video":"videos/case_001.mp4"}

Main View with a Single-Arm Robot Wrist View

{"case_id":"case_002","task_name":"put_can","task":"put the can into the basket","video":"high.mp4","wrist_video":"wrist.mp4"}

Main View with Bimanual Robot Wrist Views

{"case_id":"case_003","task_name":"put_can","task":"put the can into the basket","video":"high.mp4","left_wrist_video":"left.mp4","right_wrist_video":"right.mp4"}

With a Goal Image, Outcome Label, and Benchmark Name

goal_image shows the desired final state; label records a known success or failure outcome; benchmark identifies the source benchmark or dataset; and model identifies the policy or model that generated the rollout.

{"case_id":"case_004","task_name":"arrange_flowers","task":"arrange the flowers in the vase","video":"h.mp4","wrist_video":"w.mp4","goal_image":"goal.png","label":"success","benchmark":"RoboTwin","model":"pi0"}

Output: Evaluation Results

Outputs are written to eval/results/run_YYMMDD_HHMMSS/ by default.

Generate visualizations after a run has finished:

prm-judge visualize --run-root eval/results/run_YYMMDD_HHMMSS

For reliable MP4 playback and seeking, use the built-in Range-aware server:

prm-judge serve \
  --run-root eval/results/run_YYMMDD_HHMMSS \
  --host 127.0.0.1 \
  --port 8000

Open http://127.0.0.1:8000/report.html. For a remote server, keep the report service on loopback and create a tunnel from your workstation:

ssh -L 8000:127.0.0.1:8000 user@server

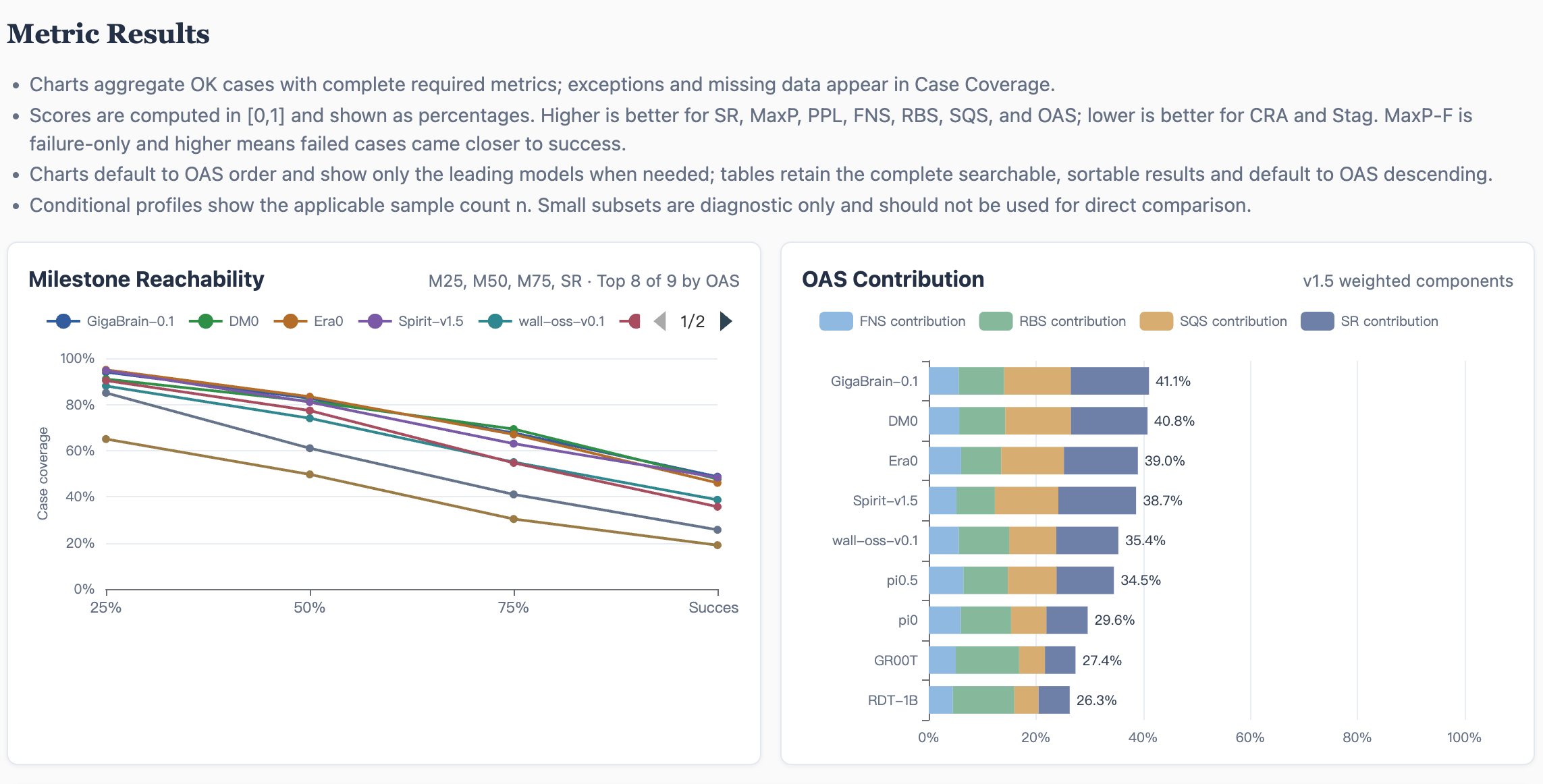

After the run completes, the final performance report presents a Model Leaderboard that summarizes the core metrics for every evaluated model. You can also use the interactive trajectory explorer to filter and inspect individual cases, including their rollout videos, progress curves, live-frame values, and per-case metrics.

Default Settings

The table below lists the main defaults in eval/run_eval.sh. Keep these settings for the first run. After confirming that the evaluation pipeline works, adjust them for video length, GPU memory, and evaluation goals.

PRM Evaluation Methods

The toolkit supports several progress-evaluation methods. dopamine uses the Robo-Dopamine model and is the default; robometer uses the RoboMeter model; recorded reads precomputed curves without loading a model; and a custom adapter can integrate your own PRM. Once a progress curve is available, all methods share the same postprocessing and metric pipeline.

Run with RoboMeter

RoboMeter is a sequence-style PRM model. The runner can start a local RoboMeter HTTP server, wait for /health, evaluate cases, and shut the server down after the run.

PRM=robometer \
MANIFEST=/path/to/cases.jsonl \
bash eval/run_eval.sh

Reuse an already running server when you want to manage the model process yourself:

PRM=robometer \
MANIFEST=/path/to/cases.jsonl \
ROBOMETER_SERVER_URL=http://localhost:8000 \
ROBOMETER_AUTO_START=0 \
bash eval/run_eval.sh

Dopamine Modes

Robo-Dopamine is a pair-style PRM. It constructs a progress curve by scoring sampled states with one of three comparison modes.

Examples:

EVAL_MODE=incremental MANIFEST=cases.jsonl PRM_PATH=/path/to/prm bash eval/run_eval.sh
EVAL_MODE=forward MANIFEST=cases.jsonl PRM_PATH=/path/to/prm bash eval/run_eval.sh
EVAL_MODE=backward MANIFEST=cases.jsonl PRM_PATH=/path/to/prm bash eval/run_eval.sh

Video Views and Goal Images

Every case must provide video as its main view. Wrist views and goal_image are optional: wrist videos add details about grasps, contacts, and occluded areas, while a goal image describes the desired final state.

Video fields

• video: required main-view video path, such as a third-person, fixed-camera, or overhead view.
• wrist_video: wrist-view video for a single-arm robot. Do not combine it with the bimanual wrist fields.
• left_wrist_video and right_wrist_video: left- and right-wrist videos for a bimanual robot. Provide both fields together.

How Robo-Dopamine uses views

Selecting a RoboMeter view

RoboMeter evaluates one video view at a time and uses video by default. To evaluate a wrist view, set ROBOMETER_VIEW to wrist_video, left_wrist_video, or right_wrist_video. The selected field must exist in the case; otherwise, that case reports an error.

PRM=robometer \
ROBOMETER_VIEW=left_wrist_video \
MANIFEST=cases.jsonl \
bash eval/run_eval.sh

How goal images are used

goal_image is a visual reference for the completed task state. Robo-Dopamine uses it as REFERENCE END to help locate the current state along the path from task start to completion; in backward mode, the goal image is also compared directly with the current sampled state.

• When a reliable success-state image is available, set goal_image in the manifest; for example, use the final frame of a successful demonstration.
• If no goal image is available, omit the field. PRM-as-a-Judge automatically uses eval/examples/blank.png as a placeholder.
• Do not use the final frame of the rollout being evaluated unless that rollout is known to have succeeded; otherwise, a failure state may be treated as the task goal.

Multi-GPU

The default uses one GPU to keep the command predictable. On larger batches, set GPUS or pass --gpus to shard cases across local devices.

GPUS=0,1,2,3 MANIFEST=cases.jsonl PRM_PATH=/path/to/prm bash eval/run_eval.sh

Each worker loads one PRM instance on its assigned GPU, processes its shard, and the runner merges shard outputs at the end. This is simple local data parallelism and is usually enough for evaluation batches.

You can also ask the runner to choose GPUs automatically. In the current implementation, GPUS=auto queries nvidia-smi, selects devices whose used memory is below 1024 MiB, and falls back to GPU 0 if no such device is found.

GPUS=auto MANIFEST=cases.jsonl PRM_PATH=/path/to/prm bash eval/run_eval.sh

For RoboMeter multi-GPU runs, each shard uses ROBOMETER_SERVER_PORT + shard_index for an auto-started server, so choose a free base port when running several evaluations on the same machine.

Progress Curve Standard

The metric stack consumes normalized absolute progress curves. Every PRM adapter should eventually produce:

progress[t] in [0, 1]

Do not force the curve to be monotonic. Regressions and oscillations are meaningful signals used by drawdown, recovery, stagnation, and regret metrics. Results should store both progress_raw and progress_processed.

Progress Curve Processing

After the PRM produces a raw progress curve, the toolkit applies the following steps:

1. Normalize the PRM output to absolute progress in [0, 1].
2. Clip values to [0, 1].
3. Replace isolated local outliers with the local median. The default threshold is 0.35.
4. Smooth with a weighted temporal window.

p'_t = 0.1*p_{t-2} + 0.2*p_{t-1} + 0.4*p_t + 0.2*p_{t+1} + 0.1*p_{t+2}

The default outlier handling and smoothing reduce isolated erroneous spikes and short-term fluctuations. They do not force progress to increase continuously, so genuine regressions remain visible. For example, when a rollout is clearly advancing overall but adjacent-frame scores fluctuate, these steps produce a more stable representation of the trend.

Disable postprocessing when you are debugging raw PRM behavior:

prm-judge eval --manifest cases.jsonl --outlier-method none --smoothing none

Change the smoothing weights from the CLI:

prm-judge eval --manifest cases.jsonl --smoothing-weights 0.05,0.15,0.6,0.15,0.05

The weight list should have odd length, non-negative values, and a positive sum. It is normalized automatically. For deeper customization, edit eval/prm_judge/curves.py, especially parse_smoothing_weights, weighted_smooth, and PostprocessConfig.smoothing_weights.

Evaluation Metrics

By default, metrics and evaluation reports use the progress curve after outlier handling and smoothing. The raw curve is retained in the outputs mainly for inspecting the PRM's direct predictions and troubleshooting.

↑ means higher is better; ↓ means lower is better.

In the formulas below, p_0 = 0, p_1, ..., p_T is the processed normalized progress curve, θ is the success threshold, δ = 0.005 is the default stagnation threshold, and 1[·] is the indicator function.

Custom PRM

The toolkit separates two responsibilities: a PRM adapter produces a progress curve, and the metric stack computes diagnostics from the standardized curve. This common interface supports both built-in and custom Judge Models.

Minimal integration steps

1. Create a new adapter file under eval/prm_judge/prm/ and subclass BasePRMAdapter.
2. Implement predict(case, output_dir) so it reads the manifest case, runs your PRM, and returns a ProgressTrace.
3. Register the backend name in eval/prm_judge/cli.py: add it to the --prm choices and create the adapter in build_adapter.
4. Make sure the returned progress is absolute [0, 1], or run with the matching --normalize and --source-type options.
5. Evaluate with prm-judge eval --prm your_backend --manifest cases.jsonl.

Adapter checklist

• Read EvalCase fields such as videos, task text, goal image, and metadata.
• Run your PRM and return a progress sequence aligned to sampled frames or video time.
• Decide whether the output is absolute progress, step-wise deltas, or another score.
• Decide whether the scale is [0, 1], [0, 100], or uncalibrated.
• Prefer returning absolute progress in [0, 1]. If not, pass the matching --normalize and --source-type options for the whole run.

from prm_judge.prm.base import BasePRMAdapter
from prm_judge.schema import EvalCase, ProgressTrace

class MyAdapter(BasePRMAdapter):
    def predict(self, case: EvalCase, output_dir):
        scores = run_my_model(case.videos, case.task, case.goal_image)
        return ProgressTrace(
            case_id=case.case_id,
            progress=scores,
            source_scale="0_1",
            source_type="absolute",
        )

Existing adapters under eval/prm_judge/prm/ can be used as templates. recorded.py is the smallest example, while robometer.py shows how to wrap an external model service. Document the model's output scale, semantics, required views, goal-image behavior, and runtime requirements next to your adapter.

RoboMeter as an example

RoboMeter is integrated as a sequence-style backend through an HTTP adapter. It reads outputs_progress.progress_pred as an absolute progress curve in [0, 1]. Because it reasons over a longer sequence, it is a useful comparison point for repeated-motion cases where local pairwise judging is not enough.

When you reuse an existing RoboMeter server, PRM-as-a-Judge checks /model_info and requires the server model path to match PRM_PATH. This helps avoid accidentally evaluating with an old checkpoint. The adapter uploads frame arrays as .npy multipart files, which keeps long-video requests manageable.

Command Reference

Batch evaluate many videos without moving files

MANIFEST=/data/my_rollouts/cases.jsonl \
PRM_PATH=/models/Robo-Dopamine-GRM-8B-Pro \
OUTPUT_ROOT=eval/results/my_rollouts \
bash eval/run_eval.sh

Use all four local GPUs

GPUS=0,1,2,3 MANIFEST=cases.jsonl PRM_PATH=/path/to/prm bash eval/run_eval.sh

Run a denser curve for short manipulation tasks

FRAME_INTERVAL=36 MANIFEST=cases.jsonl PRM_PATH=/path/to/prm bash eval/run_eval.sh

Use benchmark labels for success grouping

prm-judge eval --manifest cases.jsonl --success-source label --visualize

Check a manifest before spending GPU time

prm-judge eval --manifest cases.jsonl --prm recorded --dry-run --limit 10

Compare raw and processed progress

prm-judge eval --manifest cases.jsonl --outlier-method none --smoothing none --visualize
prm-judge eval --manifest cases.jsonl --visualize

FAQ

1. What is goal_image used for?

goal_image is an optional parameter specific to Robo-Dopamine. It provides an explicit visual reference for the completed task state, helping the model understand what success should look like, reduce goal ambiguity, and improve progress-judgment accuracy. Robo-Dopamine uses it as REFERENCE END; in backward mode, the goal image is also compared directly with the current sampled state. Other Judge Model adapters do not necessarily use this field.

In practice, set goal_image in the manifest when a reliable success-state reference is available, preferably the final frame of a manually verified successful demonstration or a separately captured target state. If no reliable goal image is available, omit the field; the Robo-Dopamine adapter will use eval/examples/blank.png as a placeholder, although the evaluation will not benefit from an explicit goal reference. Do not use the final frame of the rollout being evaluated unless that rollout is known to have succeeded, because a failure state could otherwise be treated as the task goal and reduce judgment accuracy.

2. How does Robo-Dopamine estimate progress, and when should I use another PRM as the judge?

Robo-Dopamine is a pair-wise Judge Model. Depending on EVAL_MODE, it compares two sampled images or states—for example, adjacent samples, the initial state and the current state, or the current state and a goal reference—to estimate relative progress. These pair-wise judgments are then linked into a progress curve.

This local comparison works well for many robot manipulation tasks. However, it can be ambiguous for repeated or oscillatory motions and tasks that depend strongly on temporal context. Two images alone may not reveal whether the robot is making sustained progress, repeating an action cycle, or simply moving back and forth. For these tasks, consider a sequence-style PRM that evaluates a longer video sequence, such as RoboMeter, or use it as a comparison.
